Lubing Maschinenfabrik, founded 1949 in Barnstorf, Germany, specializes in developing and production of high pressure fogging systems for greenhouses and large halls.
LubingGreenTec Top-Climate-System was designed for an effective humidification and cooling of the air in greenhouses. Greenhouse climate control is important part of efficient production and stable yields. Together with light, temperature, nutrients and CO2, - humidity plays crucial role and creates the base for all above mentioned factors creating perfect and stress-free climate conditions for the plants in the greenhouse.
The principle

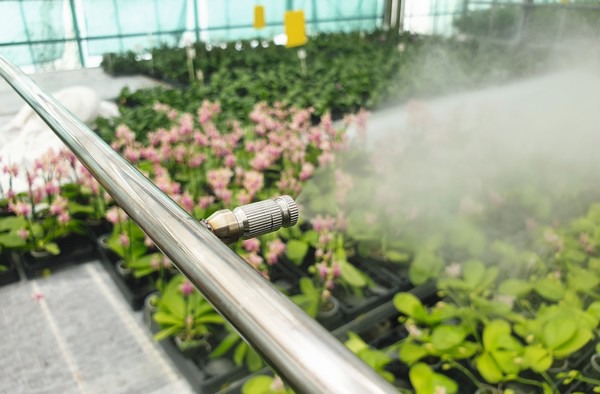

The water is supplied into the air as a fog at a pressure of 70 bar via special high pressure nozzles. The water fog evaporates immediately and removes the thermal energy from the air so that the air temperature is lowered and at the same time the humidity is increased.
The system
With our special high pressure nozzles with a hole of 0.2 mm and the water pressure of 70 bar we produce the smallest water droplets (Ø 0.005 mm). This drop size cannot be achieved with a low pressure system. Only with these tiny droplets we achieve the rapid evaporation and prevent the drop formation on the plants. With the extensive range of accessories, the system can be optimal adapted to individual needs. We always focus on quality. For example, all components placed in the greenhouse are made of high quality stainless steel.

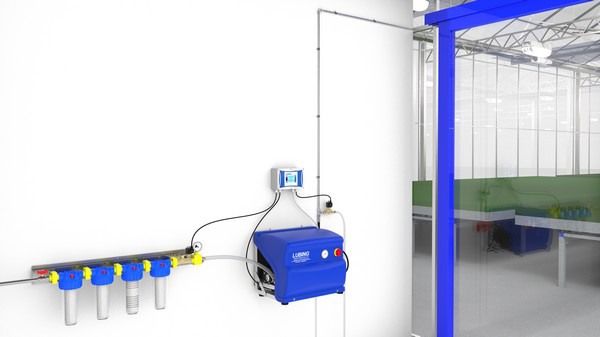

The fogging system can be connected with an existing climate computer through our touchscreen controls. Our interactive control monitors the system and protects the pump unit from running dry or the overload of the motor. Additional it can be run as independent climate computer controlling the temperature and relative humidity in the greenhouse.
Advantages
High pressure fog system helps plants to stay in balance with the water supply by the root system and with evaporation rate through the leaves - the stomata remains more open. This increases the plant productivity and lowers irrigation and energy costs.
